Eaton Ellipse Eco 500 Smart-Ups 1000 Va UPS

Product :

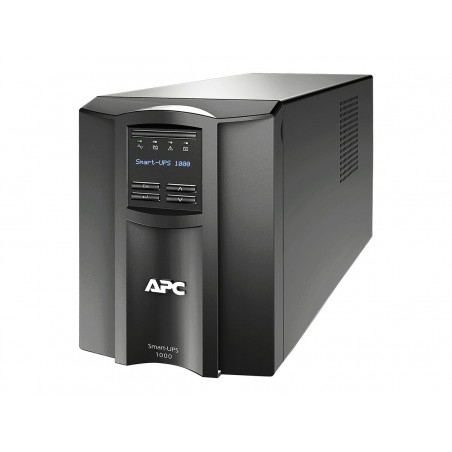

Designation: APC Smart-UPS 1000VA LCD 230V with SmartConnect

Description: APC Smart-UPS SMT1000IC - UPS - AC 220/230/240 V - 700 Watt - 1000 VA - RS-232, USB - output connectors : 8 - black - with APC SmartConnect

Manufacturer Warranty: 12 Months Return Warranty

General :

Device Type: UPS - external

Color: Black

Comes with: APC SmartConnect

Power Device :

Uninterrupted Power Supply (UPS) technology: Line interactive

Input voltage: AC 220/230/240 V

Input voltage range: AC 160 - 286 V

Input voltage range (adjustable): AC 151 - 302 V

Frequency supplied: 50/60 Hz ± 3Hz

Required frequency: 50/60 Hz ± 3Hz

Input connectors: 1 x IEC 60320 C14 power supply

Output connector details: 8 x power supply IEC 60320 C13

2 x IEC jumper

Output voltage: AC 230 V ± 5% - 50/60 Hz

Power supply capacity: 700 Watt / 1000 VA

Output waveform: Sine wave

Overvoltage protection: Yes

Power Consumption Index: 459 Joules

Circuit protection: Circuit breaker

Battery :

Quantity: 1

Technology: Lead acid

Autonomy (max.): 5.8 min at full charge

19.1 min at half load

183 min at 50 Watts

100 min at 100 Watts

45.2 min at 200 Watts

24.7 min at 300 Watts

15 min at 400 Watts

9.8 min at 500 Watts

7.1 min at 600 Watts

5.8 min at 700 Watts

Recharge time: 3 hours

Transfer time: 6 ms

Features: Maintenance free, sealed, leak proof

Networking :

Remote management interface: RS-232, USB

Expansion/connectivity

Interfaces: 1 x management (RS-232)

1 x USB

1 x EPO (emergency power off)

Expansion slots: 1 (total) / 1 (free) x SmartSlot

Various :

Cables included: Serial cable - external

USB cable - external

Features: Audible signal, emergency power off, LCD display, Automatic Voltage Regulator (AVR), cold start function, automatic self-test, predictive failure notification, hot swappable batteries, energy meter

Compliance Standards: CSA, UL 1778, VDE, IEC 62040-2, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1

Software / System Requirements :

Software(s) included: APC PowerChute Business Edition

Environmental Specifications

Minimum operating temperature: 0 °C

Maximum operating temperature: 40 °C

Operating humidity: 0 - 95%.

Noise level: 41 dBA

Dimensions and weight :

Width: 17.1 cm

Depth: 43.9 cm

Height: 21.9 cm

Weight: 18.86 kg

Dimensions and weight (packed)

Packaged width: 32.8 cm

Depth packed: 59.5 cm

Packed height: 37.6 cm

Packed weight: 22.77 kg

The technical data is provided by third parties for information purposes. We assume no responsibility for any errors in the data.
