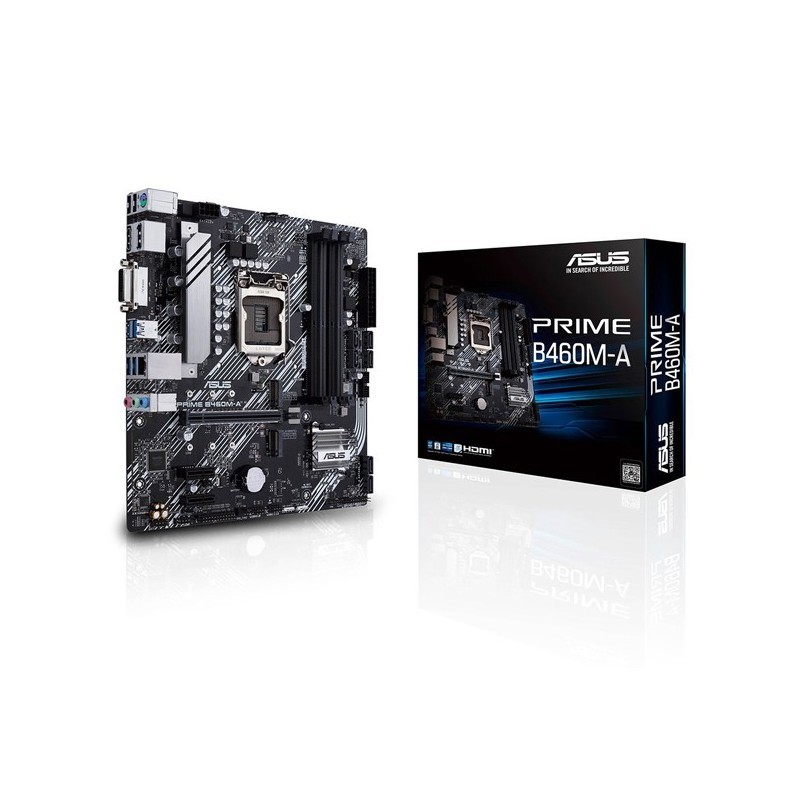

ASUS Carte mère PRIME B460 M-A

157,23 €
TTC livraison 3 à 4 jours

ASUS Carte mère prime b460m a m atx

4 DDR4

DP HDMI DVI

USB2.0 USB3.0 USB 3.2

cpu génération 10

Quantité

ProcesseurIntel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *

Supports Intel® 14 nm

CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

ChipsetIntel® B460

MémoireIntel® B460 Chipset 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

* Supports Intel® Extreme Memory Profile (XMP)

OptiMem

GraphiqueIntegrated Graphics Processor- Intel® UHD

Graphics support 1 x DisplayPort 1.4

1 x HDMI 1.4b

1 x DVI-D

Stockage Total supports2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® B460 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10

Réseau Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Audio

Realtek® ALC887 7.1-Channel High Definition Audio CODEC *

- Supports : Jack-detection, up to 24-Bit/192kHz playback

Audio Feature :

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

Ports USB

Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)

4 x USB 2.0 port(s)

Interface E/S Arrière

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 3.2 Gen 1 Type-A

2 x USB 2.0

3 x Audio jack(s) Interface E/S Interne

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x CPU OPT Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

1 x AAFP connector

2 x Aura RGB Strip Header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional

2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional

4 USB 2.0 port(s) 2 x M.2 Socket 3

1 x SPI TPM header

1 x LPT header 6 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper(s)

1 x COM port header Système d'exploitationWindows® 10 64-bit

FormatmATX Form Factor ( 24.4 cm x 23.4 cm )

AOC
CMASU-P-B460M-A
